Overview:

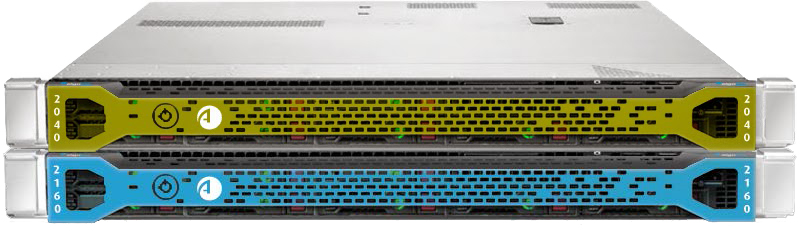

The AlgoSec 2000 Series appliances are designed to provide a smooth turnkey deployment of the AlgoSec Security Management Solution. Based on a hardened and optimized operating system, AlgoSec appliances deliver flexibility, scalability and extensibility to organizations of all sizes.
Secure
- Hardened operating system optimized for the AlgoSec Security Management Solution
Easy To Deploy
- Easy integration with your network
- Preloaded with the entire AlgoSec Security Management Solution
Enterprise Grade
- Redundant components for maximum uptime
- High-availability using two appliances in active-standby mode
- Load-sharing between multiple appliances for increased scalability and fast report generation
- Geographically distributed architecture for improved network efficiency
Specifications:
| Model | 2062 | 2162 | 2322 |
|---|---|---|---|
| Specifications | |||
| Number of Supported Devices* | 1 – 60 | 60 – 550 | 550 – 1,200 |
| CPU | 6 cores: Intel Xeon E5-2603 v3 | 16 cores: Intel Xeon E5-2600 v3 | 32 cores: Intel Xeon E5-2600 v3 |
| Ram | 16GB | 64GB | 128GB |
| LAN Port | 2x 10/100/1000 Ethernet | 4x 10/100/1000 Ethernet | 4x 10/100/1000 Ethernet |
| Video Connection | VGA | VGA | VGA |
| USB | 1 x USB 2.0 Ports 3 x USB 3.0 Ports |
5 x USB 3.0 Ports | 5 x USB 3.0 Ports |
| Power Supply | HP 550W FIO | HP 500W FS – Redundant | HP 800W FS – Redundant |
| Storage | 2x 900GB | 5x 900GB | 8x 1200GB |
| iLO (Integrated lights out) | HP iLO Standard | HP iLO Standard | HP iLO Standard |
| Redundancy | SW RAID | HW RAID 5, Dual CPU Built-in fail-safe in case of a hard-drive failure |
HW RAID 5, Dual CPU Built-in fail-safe in case of a hard-drive failure |
| Operating Temperature | 10° to 35°C (50° to 95°F) | 10°C to 35°C (50°F to 95°F) | 10°C to 35°C (50°F to 95°F) |
| Operating Humidity | 5% to 95% | 8% to 90% | 8% to 90% |
| Physical Specifications | |||
| Form Factor | 1U Rack form factor | 1U Rack form factor | 1U Rack form factor |
| Dimensions | H: 1.68" (4.32 cm) W: 17.11" (43.46 cm) L: 23.92" (60.76 cm) |
H: 1.68" (4.32 cm) W: 17.11" (43.46 cm) L: 23.92" (60.76 cm) |
H: 1.68" (4.32 cm) W: 17.11" (43.46 cm) L: 23.92" (60.76 cm) |
| Weight (maximum) | 8 SFF 37.44 Ib. (17kg) | 8 SFF 33.3 lb. (15.31 kg) | 8 SFF 33.3 lb. (15.31 kg) |
| Chassis | HP Rack Mount Consoles | HP Rack Mount Consoles | HP Rack Mount Consoles |
| Compliance | |||
| USA/Canada |
|
||
| EMEA and International |
|
||
Documentation:
Download the AlgoSec 2000 Series Appliances Datasheet (.PDF)
